Your pressure tank is the battery of your well system. It stores pressurized water so the pump does not start every time you turn on a faucet[1].
An undersized or failing tank causes short-cycling — the pump turns on and off every few seconds. This burns out your pump years early. The right tank saves you thousands in pump replacements.
Quick Comparison: Top 4 Well Pressure Tanks
| Tank | Size | Draw-Down | Max PSI | Warranty | Price | |
|---|---|---|---|---|---|---|
| Well-X-Trol WX-302 Our Pick for Most Homes | 86 gal | 35.6 gal | 100 PSI | 7 years | $500–$700 | Check Price |
| Amtrol Well-X-Trol WX-251 Best Balance of Size & Price | 62 gal | 20.5 gal | 100 PSI | 7 years | $350–$500 | Check Price |
| Flexcon Industries FL13 Best Mid-Size | 42 gal | 14.4 gal | 125 PSI | 5 years | $250–$400 | Check Price |
| Water Worker HT-32B Budget Pick | 32 gal | 8.6 gal | 100 PSI | 5 years | $150–$250 | Check Price |
How We Chose These Tanks
We evaluated over 12 bladder-type pressure tanks and narrowed to these 4 based on:
- Draw-down capacity: How much usable water before the pump kicks on?
- Build quality: Bladder material, shell thickness, corrosion resistance.
- Warranty: Longer = more confidence from the manufacturer.
- Sizing range: Does the brand offer sizes for small and large homes?
- Plumber feedback: Which tanks do contractors trust and recommend?[4]
Detailed Reviews

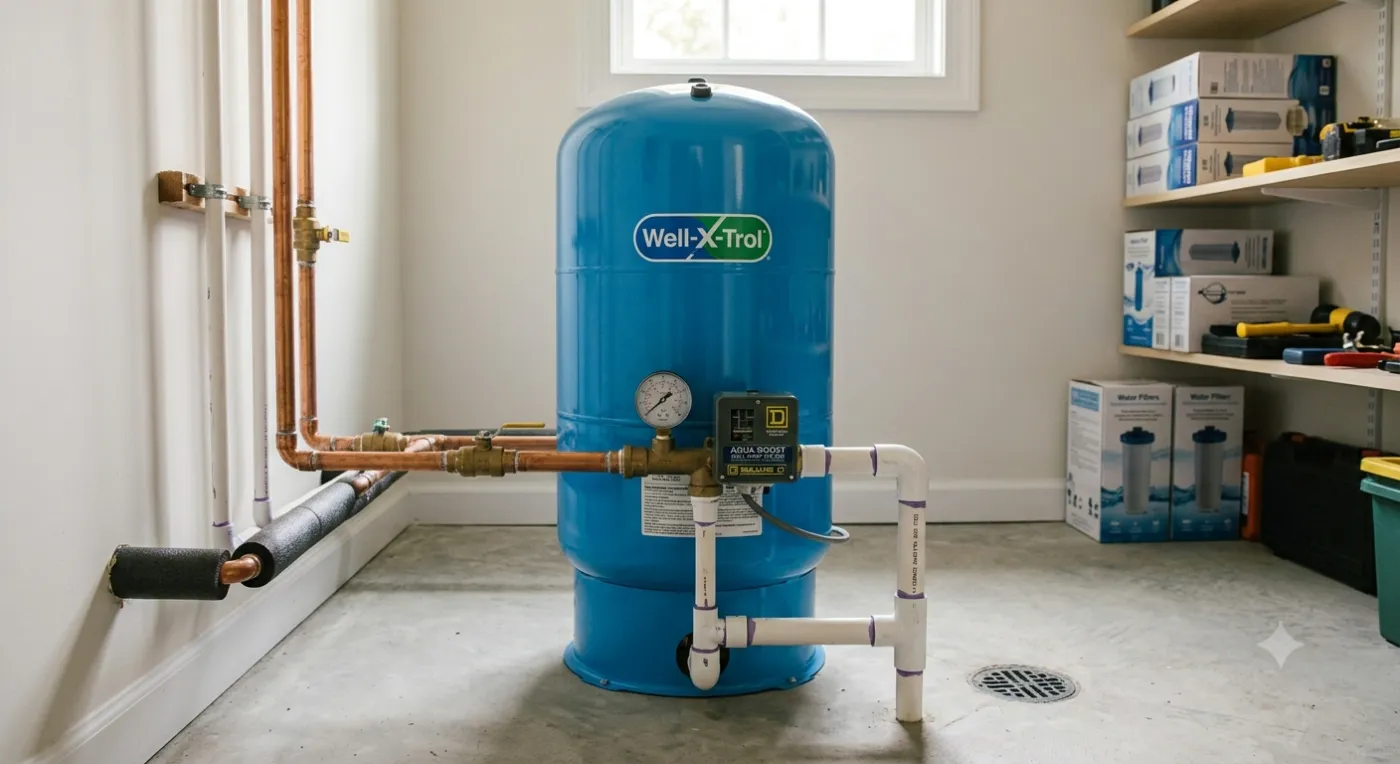

Well-X-Trol WX-302 (86 gal) — Our Pick for Most Homes
The WX-302 is the gold standard for residential well systems[2]. With 35.6 gallons of draw-down, your pump stays off much longer between cycles. Less cycling = longer pump life.
The heavy-duty butyl diaphragm resists mineral damage from hard water. The stainless steel waterway connection prevents corrosion.
Who this is for: 3+ person households. The larger draw-down significantly reduces pump cycling and provides buffer during peak demand.
Who should skip this: Small homes with 1-2 people, or tight spaces that cannot fit the 28"×62" footprint.
Amtrol Well-X-Trol WX-251 (62 gal) — Best Balance of Size & Price
The WX-251 hits the sweet spot between capacity and price. Same 7-year warranty and butyl diaphragm as the WX-302, but in a slimmer 22" diameter.
Who this is for: 2-4 person households, or anyone upgrading from a small tank on a moderate budget.
Who should skip this: Homes with 5+ people or high-demand fixtures (multiple showers, irrigation). Step up to the WX-302.
Flexcon Industries FL13 (42 gal) — Best Mid-Size
The Flexcon FL13 packs 42 gallons into a compact 22"×41" body. It fits in tight utility rooms where the bigger tanks cannot go[3].
The 125 PSI max rating is highest on this list — useful for homes with high pressure switches or booster pumps.
Who this is for: 2-3 person households, tight spaces, or systems running higher pressure.
Who should skip this: The 14.4-gallon draw-down is moderate. Large households will cycle the pump too often.
Water Worker HT-32B (32 gal) — Budget Pick
The Water Worker HT-32B is the entry-level option for small households. At $150–$250, it is hard to beat on price.
Who this is for: 1-2 person households, guest houses, or as a temporary replacement while you budget for a larger tank.
Who should skip this: The 8.6-gallon draw-down is low. Your pump will cycle more often, which shortens pump life. For 3+ people, spend more on a bigger tank.
Pressure Tank Sizing by Pump Flow Rate
Most "what size do I need" guides go by household. That's a starting point. The technically correct method is to size by your pump's flow rate (GPM) and target a minimum 1-minute pump runtime per cycle[4]. Run the pump less than 60 seconds at a time and the motor wears out years early.
| Pump flow rate | Min draw-down (1-min runtime) | Recommended tank class | Example product |
|---|---|---|---|
| 5 GPM (small / deep wells) | 5 gal | 20-30 gal tank | Water Worker HT-32B |
| 7 GPM (typical 1/2 HP) | 7 gal | 32-44 gal tank | Water Worker / Flexcon FL13 |
| 10 GPM (typical 3/4 HP) | 10 gal | 44-62 gal tank | Flexcon FL13 / Amtrol WX-251 |
| 12-15 GPM (1 HP, irrigation) | 12-15 gal | 62-86 gal tank | Amtrol WX-251 / WX-302 |
| 20 GPM (large home, multi-bath) | 20 gal | 86+ gal tank | Amtrol WX-302 or larger |
These are minimums. Most well pros size for 1.5 to 2 minutes of runtime, which doubles the recommended draw-down. If your pump is rated 10 GPM, target 15-20 gallons of draw-down, then upsize one more class to give yourself buffer for irrigation, multiple showers, or future demand.
How to find your pump's flow rate
- Check the pump nameplate. Most submersible pumps stamp the GPM directly on the housing. Look for "10 GPM @ 50 PSI" or similar.
- Run the bucket test. Open a hose bib at the wellhead. Time how long it takes to fill a 5-gallon bucket. 30 seconds = 10 GPM. 60 seconds = 5 GPM.
- Look up the spec sheet. If you know the pump model (Goulds, Franklin, Grundfos), search for the published spec. Real-world flow is usually 70-90% of rated flow due to head pressure.
Pre-Charge Pressure by Pressure Switch Setting
The air pre-charge in your tank should be exactly 2 PSI below your pressure switch's cut-in setting[6]. Most well systems use one of three or four standard switch ranges. Here's the pre-charge target for each.
| Pressure switch | Cut-in PSI | Cut-out PSI | Pre-charge target |
|---|---|---|---|
| 20/40 (uncommon, low-pressure) | 20 | 40 | 18 PSI |
| 30/50 (most common) | 30 | 50 | 28 PSI |
| 40/60 (modern recommendation) | 40 | 60 | 38 PSI |
| 50/70 (multi-story homes) | 50 | 70 | 48 PSI |
How to check the pre-charge
- Turn off power to the pump at the breaker.
- Drain the tank by opening any faucet or hose bib until the pressure gauge reads 0 PSI.
- Find the air valve on top of the tank. It looks like a tire valve.
- Check pressure with a tire gauge. Reading should match the table above for your switch setting.
- Adjust if needed. Add air with a bicycle pump, release air by pressing the valve pin.
Pre-charge drifts down over time. Check it once a year. A tank with 10 PSI pre-charge instead of 28 PSI will short-cycle constantly and burn out the pump.
Bladder vs Diaphragm vs Air-Over-Water Tanks
Three tank designs are still sold for residential well systems. They are not equivalent.
Bladder tanks (recommended for most homes)
A flexible rubber bladder separates the water from the air. Water enters and exits the bladder, never touching the steel shell. The bladder is replaceable on most premium models like Amtrol and Flexcon[2].
Pros: Long-lasting, replaceable bladder, consistent pressure. Cons: Slightly more expensive upfront.
Diaphragm tanks (also good)
A flexible diaphragm replaces the bladder, attached to the tank wall instead of being a separate sleeve. Functionally similar performance. Usually slightly cheaper.
Pros: Cheaper, simpler design. Cons: Diaphragm is not replaceable on most models. When it fails, the tank is done.
Air-over-water tanks (skip)
No bladder or diaphragm. Air sits directly on top of the water in a single steel tank. Requires an air volume control valve to maintain the air cushion as it gets absorbed into the water.
Pros: Cheapest. Cons: Higher maintenance, smaller draw-down, shorter lifespan, mineral corrosion of the steel shell. Mostly obsolete for residential. Skip unless you have a specific reason.
What to Look for in a Pressure Tank
Bigger is better (almost always)
A larger tank stores more water between pump cycles. Fewer cycles = longer pump life. If you have the space and budget, go bigger[5].
Draw-down matters more than total size
An "86-gallon" tank holds 86 gallons total, but only 35 gallons of water (the rest is air). Compare draw-down capacity, not just the label size.
Set the pre-charge correctly
The air pre-charge should be 2 PSI below your pressure switch cut-in setting[6]. If your switch is 30/50 (cuts in at 30, cuts out at 50), set the tank to 28 PSI. Check with a tire gauge when the tank is empty.
Bladder vs. diaphragm
Both work. Bladder tanks are slightly easier to service. The key is material quality — butyl rubber lasts longer than standard rubber, especially in hard water.
Signs Your Pressure Tank Is Failing
- Pump cycles every few seconds: The tank is waterlogged (bladder has failed).
- Fluctuating water pressure: Tank cannot hold consistent pressure.
- Tank feels heavy at the bottom: Water has crossed the bladder into the air side.
- Visible rust or corrosion: Replace before it leaks[1].
Read our Signs Your Well Is Failing guide for all warning signs.
What an Undersized Tank Actually Costs
Saving $200 on a smaller pressure tank can cost you $1,500-$2,500 in premature pump replacement. The math is unforgiving.
A typical submersible well pump is rated for around 1 million on/off cycles before motor failure. An oversized tank cycles the pump roughly once every 2-3 minutes during heavy use. An undersized tank cycles every 20-30 seconds. Same pump, different tank: one lasts 15 years, the other lasts 5.
| Scenario | Tank cost | Pump cycles / year | Expected pump life | 10-year total cost |
|---|---|---|---|---|
| Undersized 20-gal tank, 4-person home | $180 | ~150,000 | 5-7 years | $2,680 ($180 + 2 pumps) |
| Right-sized 62-gal tank, same home | $420 | ~50,000 | 15+ years | $420 (no pump replacement) |
Spending $250 more on the right-sized tank saves $2,200 over the next 10 years. If you take only one thing from this article, it should be: do not undersize your pressure tank.
Common Installation Mistakes
- Pre-charging too high. If pre-charge equals or exceeds cut-in pressure, the bladder cannot fill. The tank acts like a 0-gallon tank. Always 2 PSI below cut-in.
- Pre-charging with the tank full. Drain the tank to 0 PSI before checking or adjusting pre-charge. Otherwise you're measuring water pressure, not air pressure.
- Skipping the union fitting. Install a union between the tank and the pipe. When the tank fails (and it will), you can replace it without re-plumbing the whole line.
- Mounting on a soft base. Tanks need a solid level base. A waterlogged 86-gallon tank weighs over 700 lbs. Wood subfloors flex; concrete pads do not.
- No drain valve. Install a drain valve at the lowest point so you can flush sediment annually. Skipping this means you cannot service the tank without dismantling plumbing.
- Ignoring the pressure switch. A 20-year-old switch is the most common reason for "the new tank is bad." Replace the switch when you replace the tank. They cost about $20 and last longer when fresh.
Frequently Asked Questions
What size pressure tank do I need?
1-2 people: 20-30 gallons. 3-4 people: 40-60 gallons. 5+ people or irrigation: 80+ gallons. For technical sizing, target at least 1 minute of pump runtime per cycle: a 10 GPM pump needs 10+ gallons of draw-down[5].
What size pressure tank for a 10 GPM well pump?
A 10 GPM pump needs at least 10 gallons of draw-down for a 1-minute minimum runtime, which is a 44-62 gallon tank class. For longer runtime and pump life, step up to an 86-gallon tank like the Amtrol WX-302 (35.6 gallons of draw-down)[4].
What pre-charge pressure for a 30/50 pressure switch?
28 PSI. The pre-charge should always be 2 PSI below the switch's cut-in setting. For a 40/60 switch use 38 PSI. For a 50/70 switch use 48 PSI[6].
How long do pressure tanks last?
10-15 years for bladder-type tanks. Signs of failure: rapid pump cycling, pressure fluctuations, or a waterlogged tank[1].
What is the difference between a bladder tank and a diaphragm tank?
Both separate water from air. Bladder tanks have a replaceable rubber sleeve; diaphragm tanks have a fixed rubber wall. Performance is similar. Bladder tanks are slightly more serviceable. When the rubber wears out, you can replace just the bladder on premium models[2].
Why is my well pump cycling so fast?
Most likely a waterlogged or undersized tank. A waterlogged tank means the bladder failed and water has crossed into the air side, so the tank no longer stores pressurized water. Drain it and check the pre-charge: if pre-charge is at or near 0 PSI, the bladder is gone. Replace the tank.
What is draw-down capacity?
The usable water stored before the pump turns on. An 86-gallon tank holds about 35 gallons of water. The rest is pressurized air[6].
Can I install a pressure tank myself?
Yes, with basic plumbing skills. Set the air pre-charge to 2 PSI below your cut-in pressure. Plan for 2-4 hours. Professional install adds $200-$500[4].
How much does an 86-gallon pressure tank weigh?
Empty: about 110 pounds. Full of water (waterlogged failure mode): around 770 pounds. This is why proper mounting matters. Wood subfloors will flex under a waterlogged tank. Use a concrete pad or metal stand only.
References
- National Ground Water Association. "Pressure Tanks for Private Well Systems." 2024. https://www.ngwa.org
- Amtrol Inc. "Well-X-Trol Pressure Tank Specifications." 2025. https://www.amtrol.com
- Flexcon Industries. "FL Series Expansion Tank Specifications." 2025. https://www.flexconind.com
- Penn State Extension. "Water System Components: Pressure Tanks." 2023.
- Virginia Cooperative Extension. "Understanding Pressure Tanks in Well Systems." 2022.
- Water Systems Council. "Wellcare Information: Pressure Tanks." 2024. https://www.watersystemscouncil.org
